Garmin Reactor™ 40 Hydraulic Corepack with SmartPump v2

Next Product
Product Description

EVERY CAPTAIN NEEDS A CO-PILOT



Garmin brings an advanced marine technology once only available to commercial boats to the boating public in a complete package designed for powerboats and sailboats. The GHP Reactor 40 autopilot series is simply the most responsive autopilot system we have ever offered. Experience the ultimate hydraulic autopilot performance when paired with the one-size-fits-most, high reliability, brushless SmartPump. With its advanced solid-state 9-axis Attitude Heading Reference System (AHRS), you are able to mount the GHP Reactor 40 nearly anywhere, in any orientation. In addition, this new system greatly minimizes heading error, course deviation, rudder movement, and power consumption, while providing a more comfortable ride for all onboard.
You have full control of GHP Reactor 40 from the chartplotter display. Combined with a compatible Garmin networked chartplotter and BlueChart g3 Vision HD charts, you can enjoy optional features like Auto Guidance, which automatically steers GPS paths.
Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in.
  • Dimensions (H x W x D): 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)
  • Weight: 16.5 lbs (7.5 kg)
  • Temperature range: From 5°F to 131°F (from -15°C to 55°C)
  • Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
  • Power cable length: 9 ft (2.7 m)
  • Power input: 11.5-30 Vdc
  • Fuse: 40 A, blade-type
  • Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
  • Flow rate: Configurable from 0 to 2.4 L per minute
  • Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

CCU Specifications

  • Dimensions: 3 19/32" diameter (91.4 mm)
  • Weight: 5.6 oz (159 g)
  • Temperature range: From 5°F to 131°F (from -15°C to 55°C)
  • Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
  • CCU cable length: 9.5 ft (3 m)
  • NMEA 2000 power input: 9-16 V
  • NMEA 2000 LEN: 3 (150 mA)

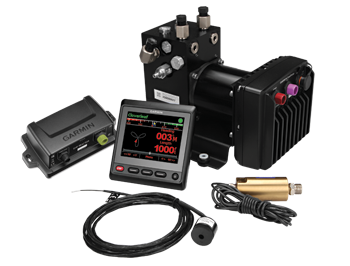

In The Box

  • GHC™ 20
  • SmartPump v2
  • Reactor 40 CCU (Course Computer Unit)
  • ECU (Electronic Control Unit) power cable

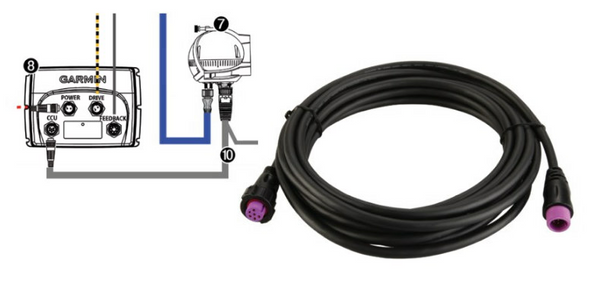

  • Interconnect cable
  • Shadow Drive
  • Buzzer
  • NMEA 2000® drop cables (2 meters)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation
$5,699.95
