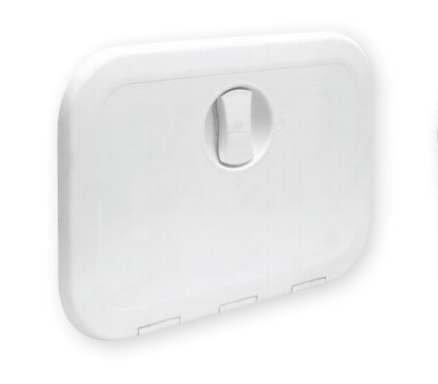

Developed by the Plastimo's research and development team, a range of hatches which combines easy installation for the boat builder and optimized space for the yachtsman.
Construction in high grade ASA for durability and resistance:
- Deck or wall mount
- EPDM rubber gasket for perfect watertightness
- Impervious to UV

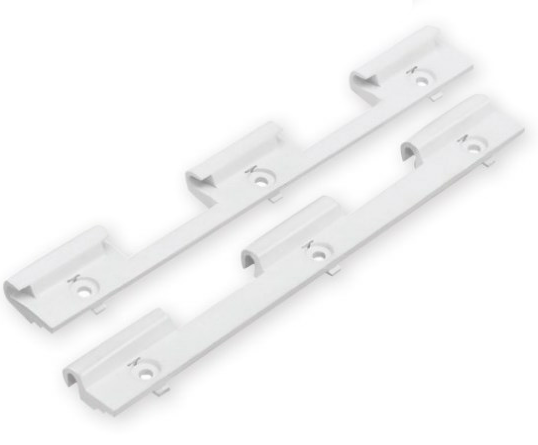

- Supplied with a set of 2 hinges allowing different installation alternatives: classic articulated hinge opening through 180° or specific hinge making the hatch removable
- Excellent mechanical resistance, enhanced by the honeycomb structure inside the hatch
- Walkable: resists 130 kg load with no distortion at all
- Opening through 180°
With two sets of hinges supplied as a standard feature, the Plastimo hatch offers two mounting alternatives according to the installation environment:
- Enough height available: hatch opening through 180°
- Limited height, not enough to open up: hatch can slide horizontally and be removed.
Easy maintenance: should the hatch be replaced, all you need to do is unclip the hatch. No need to remove or replace the deck frame (saving lots of labour time and water tightness operations).

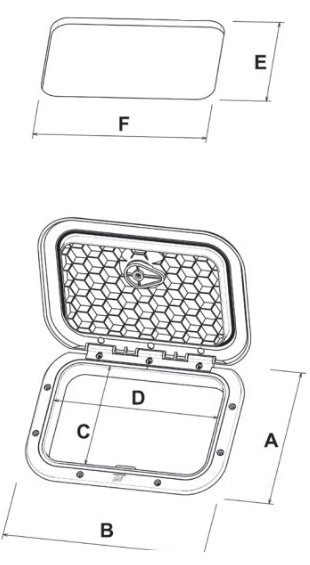

| Part # | A x B inches | C | D | E | F |
| 9990-619 | 14 3/4"x14 3/4" | 11 3/8" | 11 3/8" | 12" | 12" |
| 9990-623 | 10 5/8"x14 3/4" | 7 3/8" | 11 3/8" | 7 3/4" | 12" |
| 9990-627 | 14" x 24" | 10 3/4" | 20 5/8" | 11 1/2" | 21" |
| 9990-631 | 18" x 20" | 14 3/4" | 16 7/8" | 15 1/2" | 17 1/2" |
