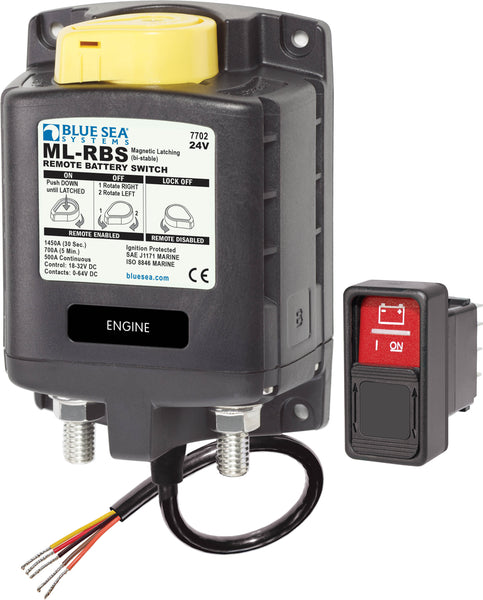

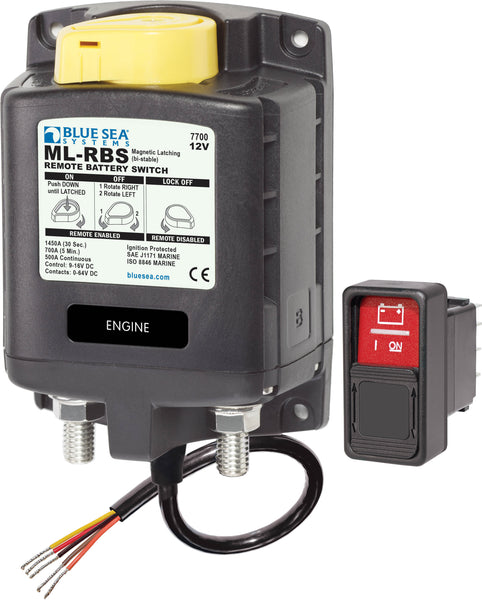

Blue Sea Systems Remote Battery Switch with Manual Control

Product Description

Allows remote operation of the battery switch without running heavy and expensive battery cable; place the main switch as close to the battery bank as you like and the supplied Contura switch operates its internal switching. Manual override and “locked off” feature for added safety. Silver alloy contacts with Ignition protected and weatherproof. Switch has 300 Amp continuous using one 4/0 cable and 500 Amp using two 4/0 cables.

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

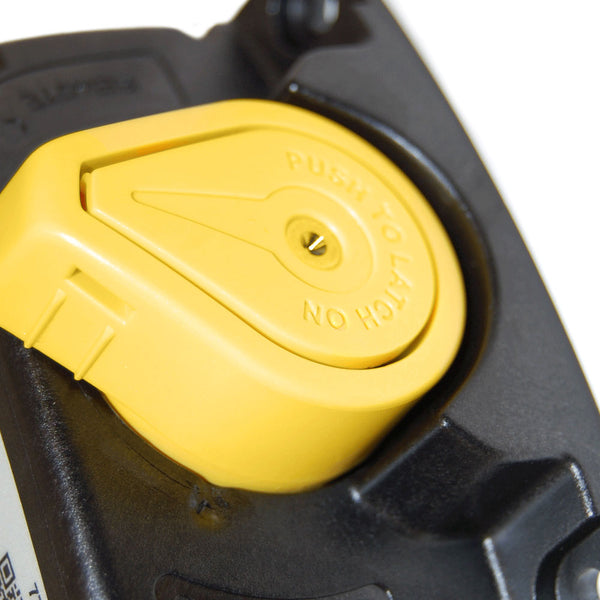

  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7∕ 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

Available in 12VDC or 24VDC
